Digital universal testing machine, 50kn

Digital universal testing machine, 50kn

$40,158.28

Notify me when back in stock

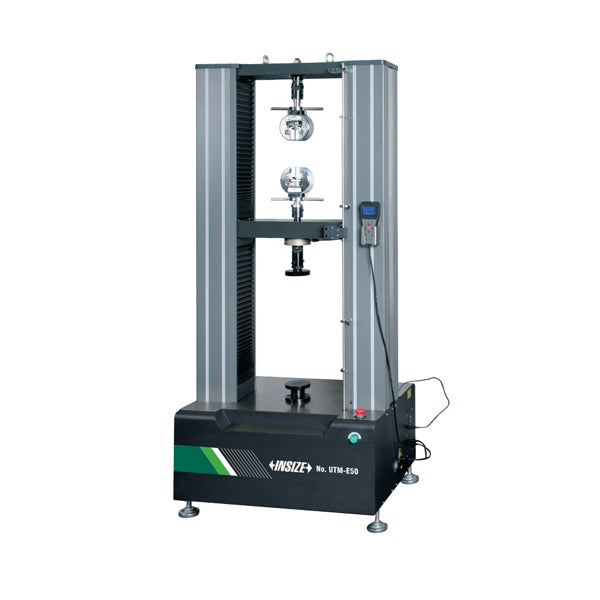

The UTM-E50 is designed for accurate, reliable, and efficient testing of metals, plastics, rubber, composites, and other materials. With a maximum test force of 50kN, it delivers the performance needed for both research and quality control applications.

High Capacity & Versatility

  • Handles up to 50kN of force, making it ideal for a wide range of mechanical testing applications.

  • Supports both tension and compression tests for complete material evaluation.

🔹 Unmatched Precision

  • 0.5 class accuracy ensures dependable results.

  • ±0.5% of indicated value force accuracy guarantees consistent and trustworthy measurements.

  • Fine crossbeam displacement resolution of 0.01mm for detecting even the smallest material deformations.

🔹 Flexible & Customizable Speed Control

  • Wide range of speed adjustment (0.001–500mm/min) to meet different testing requirements.

  • Accurate crossbeam speed control (±1%) ensures repeatable test conditions.

🔹 Optimized Test Space

  • 600mm vertical test space accommodates larger specimens.

  • Effective compression height of 800mm provides room for diverse applications.

🔹 Durable Build with Compact Footprint

  • Dimensions: 820 × 600 × 1800mm — stable, space-efficient design.

  • Robust frame weighing 350kg ensures reliability during high-capacity tests.

🔹 User-Friendly Operation

  • Intuitive software and computer control (included) for data collection and analysis.

  • Supplied with compression fixtures, wedge tension grips, and standard accessories to start testing right away.
