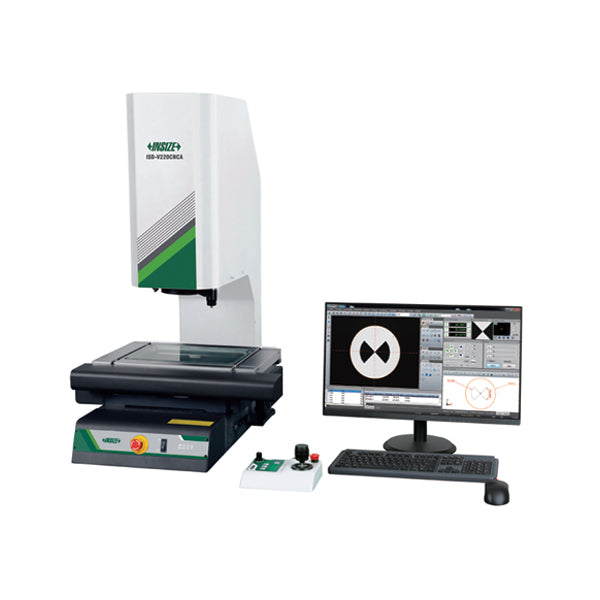

Insize Cnc Vision Measuring System (With Computer), 14.57x10.63x11.81", Manual Zoom Lens
$56,135.56
- Stage size 23.86×18.35”. Class stage size 17.72×13.78".Resolution of X/Y/Z axis .00002".
- Accuracy of X/Y axis ≤(98.4+10L)uin (L is the measuring length in inch). Repeatability of X/Y axis .00008".
- Objective 0.7X-4.5X(zoom). Working distance 3.62". Magnification 20X-128X (on 19.5" monitor).
- Camera 1.2" color CCD, 0.4M pixel. View field (diagonal length .07-.44”). Max. height of workpiece 6.30”. Max. weight of workpiece 66lb.
- Operation system Windows 7/8/10.
